So I’ve built my Firecracker Dispenser out of wood and with tighter tolerances. This version, version 2, is better constructed than version 1, but I am still having problems with jamming.

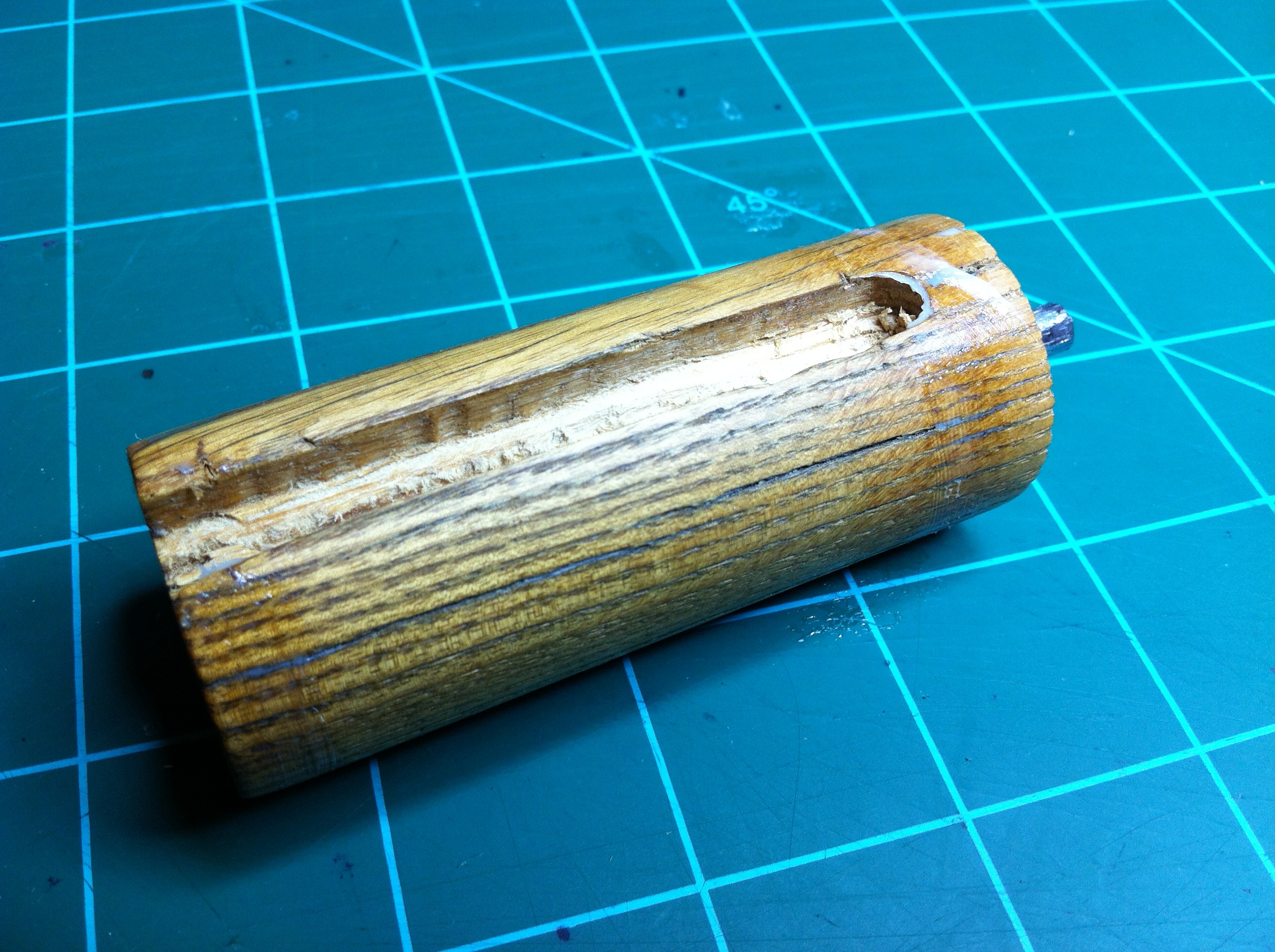

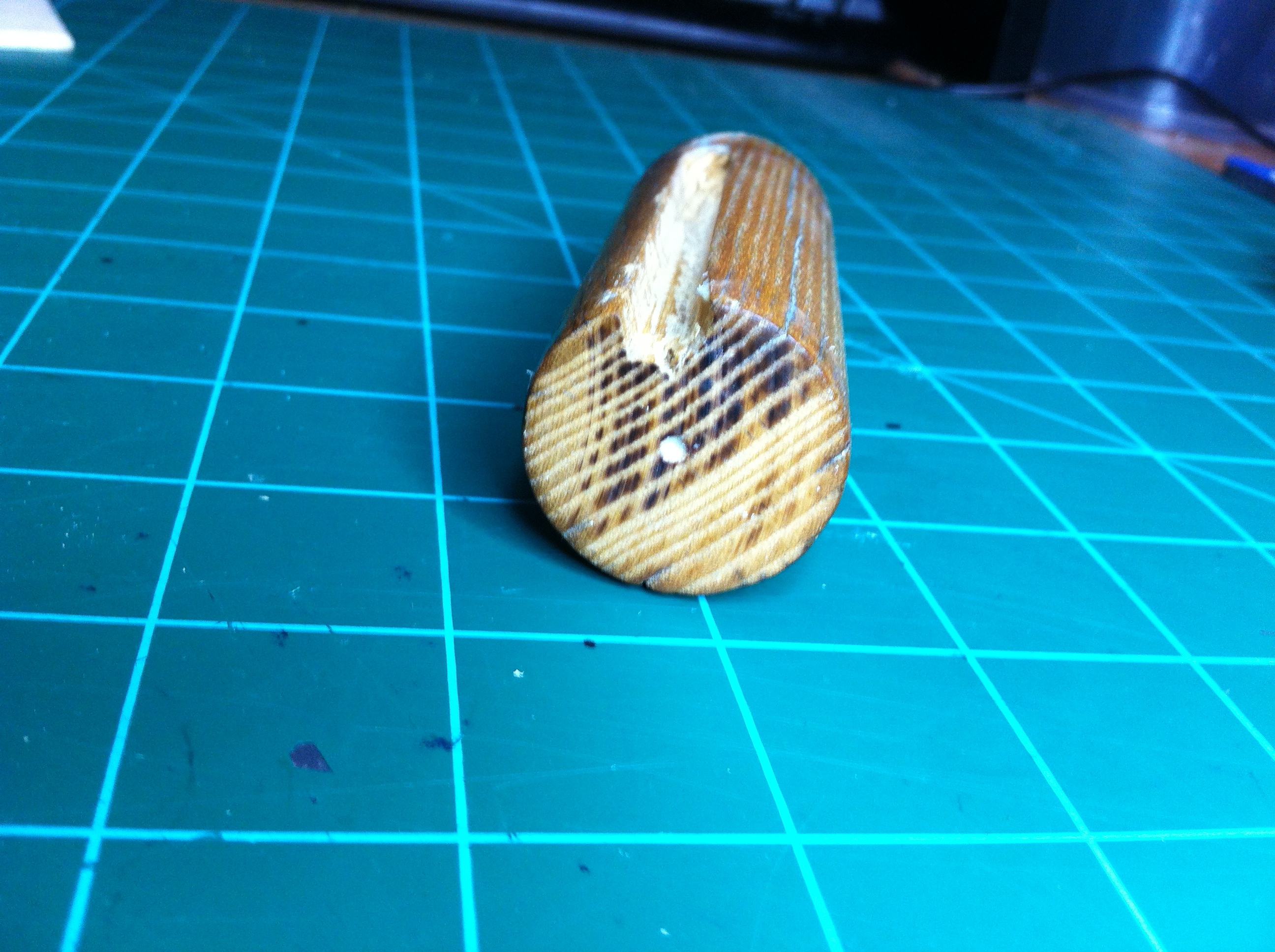

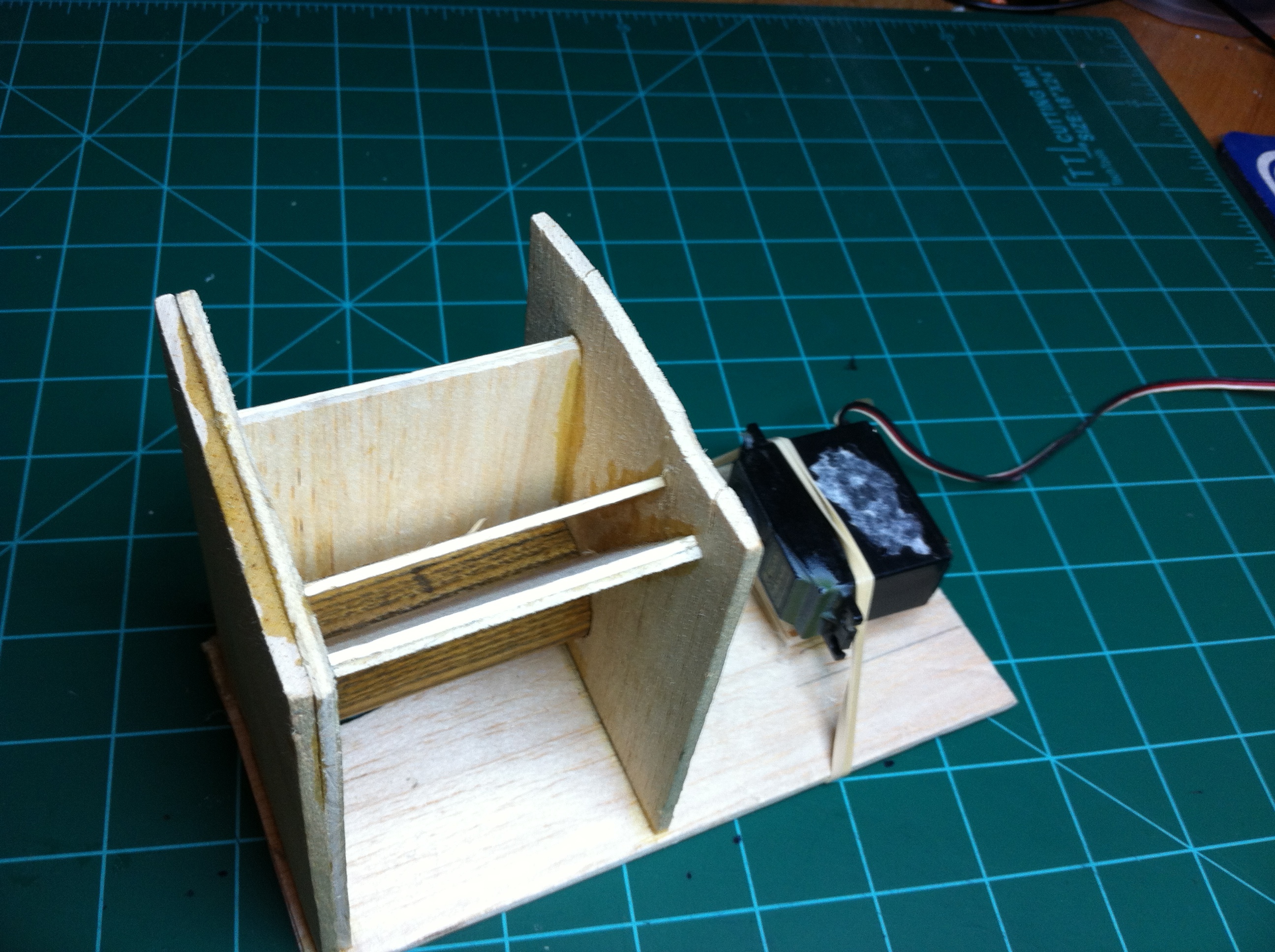

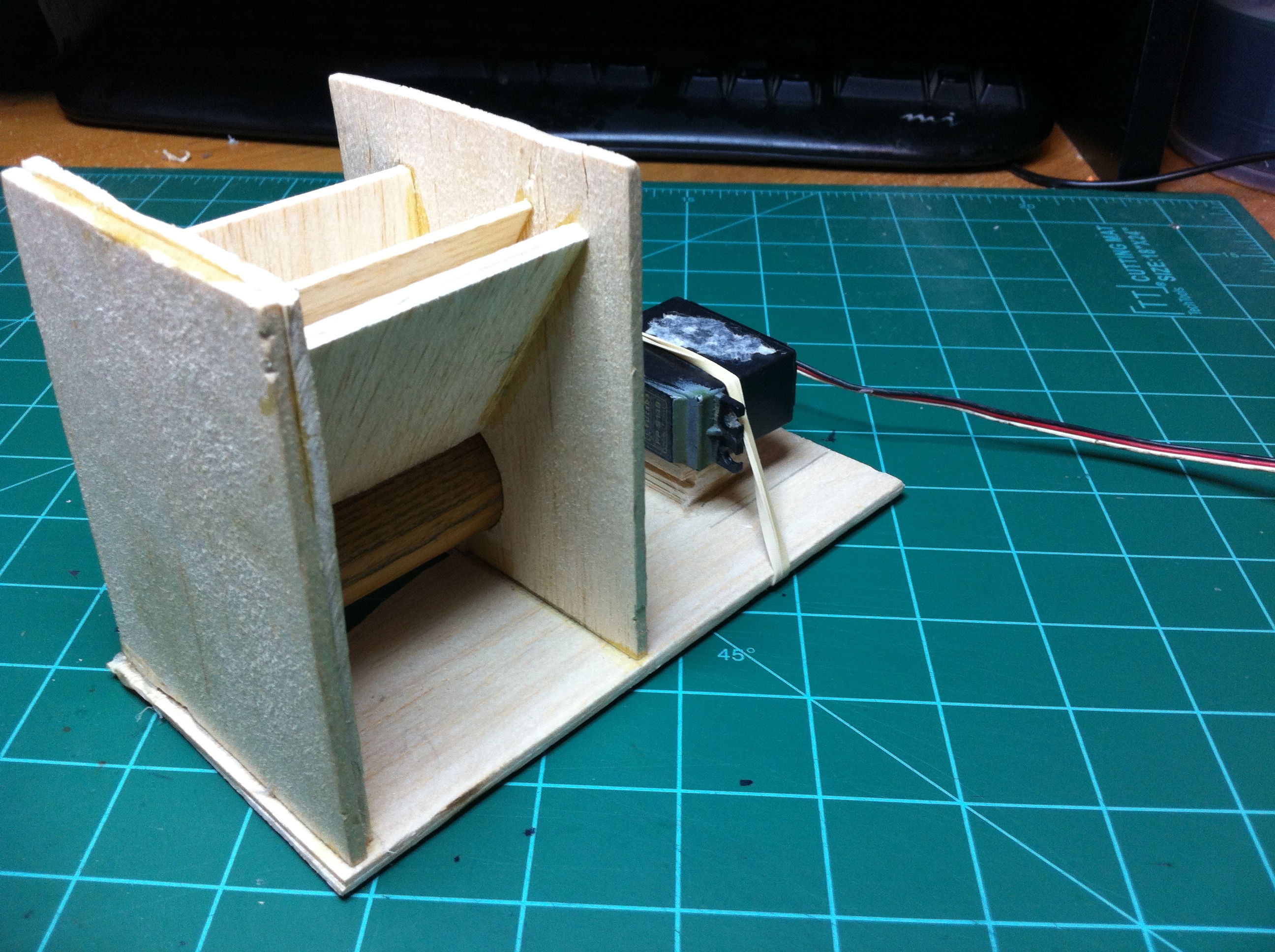

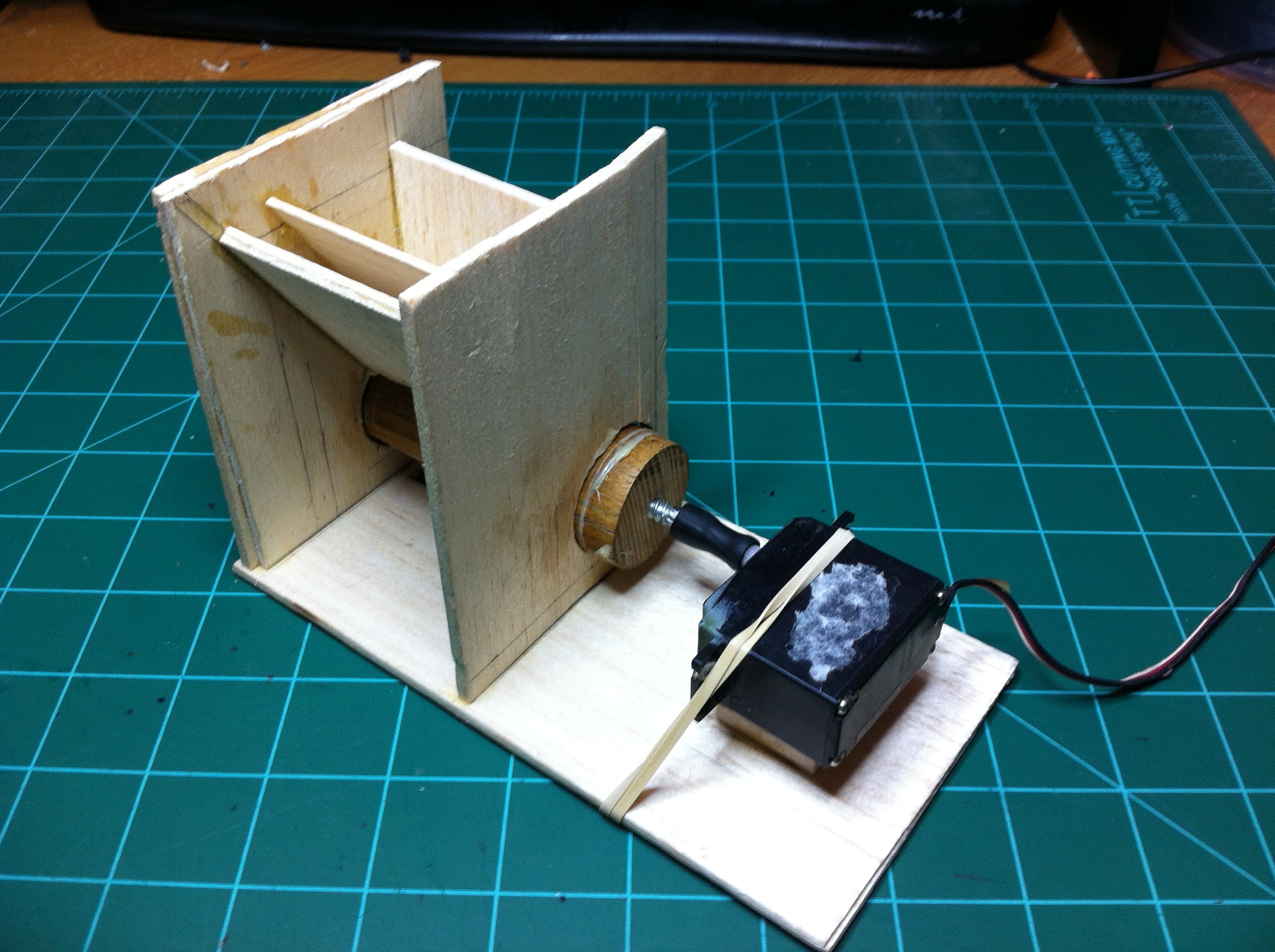

This version is made out of 1/8″ balsa wood. It’s the exact same design as the first version, it is now just made out of wood. It’s got a base, a hopper, a dowel with a groove in it, and a 360 servo. I am using a piece of 1/8″ inner diameter vacuum tubing to connect the servo to the wood screw that is in the dowel. There’s not much I can add in terms of design details because it is the same design as version one. This is more or less just an update on the project.
Here are some pictures and a video . . .
